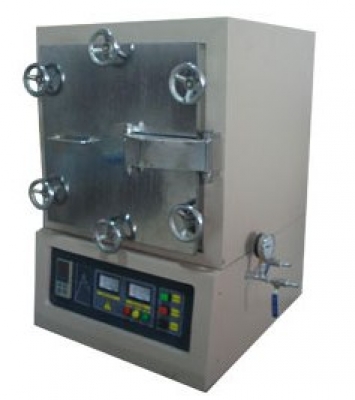

Model

XY-1200A

Furnace construction

• XY-1430 type high purity ceramic fibre insulation (energy saving 30% and weight lighter about 30% than old furnace ).

Chamber Size

100x100x100mm; 120x120x130mm; 150x150x150mm; 150x150x200mm; 200x200x200mm; 200x200x300mm; 300x300x300mm; 300x300x400mm

Power

700 W ~8KW

Voltage

AC 220V 50/60 Hz (please tell us when your place order.)

Max. Temperature

1200 °C  (< 1 hour)

Continuous work temp.

1100 °C

Max. Heating Rate

30 °C /min

Temperature controller

• PID automatic control and auto-tune function.
• 30 programmable segments for precise control.
• Built in protection for over-heated and broken Thermal couple.
• Larger digital control panel (48 x 96 mm) for easy operation.

Temperature Accuracy

+/- 1 °C

Heating Element

Kanthal A1 wire

Thermal Couple

K type

Outer Dimension

320x385x520mm to 550x580x1200mm

Gross weight with package

65 Kgs~350kgs

Software to control furnace through computer
(if you need, additional order)

Communication module installed in temperature controller

Software –TCS(Temperature Control System, available for Win2003, Win XP)

One USB cable, one RS485 Serial interface.

Warranty

24 months limited warranty (Consumable parts such as thermocouple, o-rings and heating elements are not covered by the warranty, please order the replacements at related products below.)

Certificate

CE certified
