SP0604.11 : Đồng hồ áp suất G Series - HAOYING
Thông số chính :
Cảm biến áp suất - Đồng hồ áp suất - G Series - Pressure sensor - Pressure Transmitter :

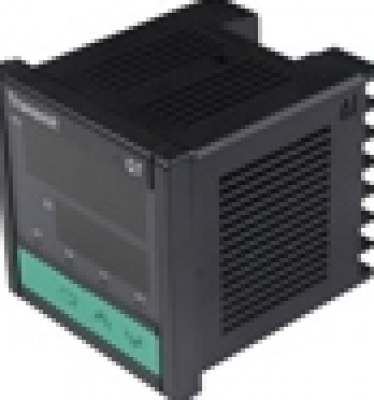

Đồng hồ áp suất G Series Pressure Indicator

G series digital pressure indicator has high reliability and high anti-jamming performance. It firstly adopts switch power 85v – 380v to ensure the long-term working, this controller has a perfect AT self-adjusting effect.
Range : -1999-5999(DC input ) (radix point changeable)
Input : 1.5mV/V; 2mV/V; 3.33mV/V; 0~5VDC; 0~10VDC, 0~5VDC; 0~10VDC; 1~5VDC

Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ)
Hãng cung cấp : HAOYING
Model :
Chất lượng : Bảo hành 18 tháng
 Catalog Video





G Series Pressure Indicator
G series digital pressure indicator has high reliability and high anti-jamming performance. It firstly adopts switch power 85v – 380v to ensure the long-term working, this controller has a perfect AT self-adjusting effect. The non-interference switch function of manual control/auto-control is set via the panel of Pressure Indicator. It has 7 alarm forms. The Pressure Indicator can be widely used in the fields which need temperature display and automatic control for hydraulic pressure, petroleum, plastic, printing and dyeing, spinning industry and so on.

Specifications:

G series digital pressure indicator

Range

-1999-5999(DC input ) (radix point changeable)

Input

1.5mv/v;2mv/v;3.33mv/v;0~5vdc;0~10vdc;1~5vdc;4~20ma

Output

0~5vdc;0~10vdc;1~5vdc

Accuracy

±0.3%full range

Dimension

96*96*55mm 96*48*55mm 48*96*55mm

Sampling period

200ms

Aided supply voltage

10vdc;max12vdc;24vdc;(15~36vdc)

Power supply

85-380vac,50-60hz;(AC/DC excitation)24v
