SP0605.05 : PT120 | Cảm biến áp suất máy ép nhựa | HAOYING
Thông số chính :

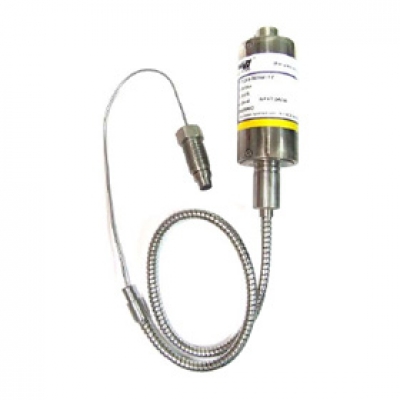

PT120 | Cảm biến áp suất máy ép nhựa | HAOYING | Melt Pressure Transducer

Thiết kế | Chế tạo thiết bị | Máy móc | Dây chuyền | Hệ thống pha trộn định lượng | Hệ thống điều khiển khí nén | Tích hợp từ các thiết bị công nghệ Bơm | Van | Cảm biến đo lường | Thiết bị khí nén SMC ( Nhật bản ) | Thiết bị điều khiển PLC của hãng Allen Bradley (Mỹ) | SIEMENS ( Đức )
Hãng cung cấp : HAOYING
Model : PT120
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Features:
Intrinsically safe explosive proof design, measuring in the unsafe environment of flammability and exploding.
This PT120 /PT120Bseries are suitable for the pressure measuring and controlling in the high temperature liquid medium of the rubber plastic, chemical fibre, steam, petroleum chemical and etc.
Specifications

Ranges

0~30bar~2000bar

Combined accuracy

0.25%FS 0.5%FS1%FS

Output signal

PT120: 1.5mV/V;2.mV/V 3.33mV/V
PT120B: 0-5V;0-10V;4-20mA

Excitation

10 Vdc    24Vdc(12~36Vdc)

Operating temperature

550

Electric connection

6 pin & 8 pin or direct down-lead

Process connection

Process connection 1/2-20UNF M14×1.5 M18×1.5, Flange or optional
