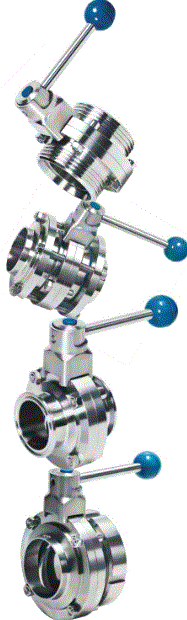

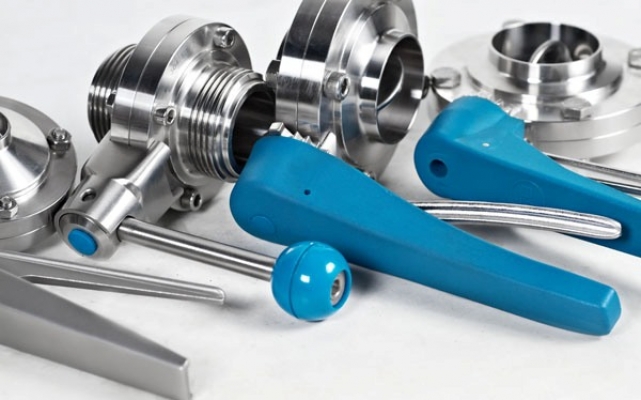

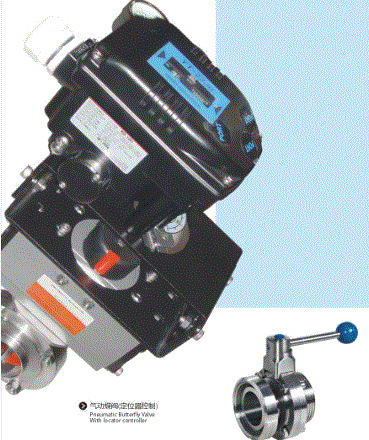

Butterfly valve, whether manual or automatic operation, can be used in food processing, pharmaceutical and chemical products, industrial fluid applications. Handle control valve "open"and "off"position, of course, can be adjusted to a position between. Pneumatic actuator to control the axial movement of the piston 90 into rotary motion transmitted to the valve.
Size DN10 to DN300, 1 / 2 "-12"
Maximum temperature: 150 ℃ to meet the CIP / SIP
Maximum pressure: 10bar
Material: ASTM T304/T316L, 1.4301/1.4404
Threaded flange connection such as welding clamp
Implementation of the standards DIN SMS RJT 3A ISO IDF

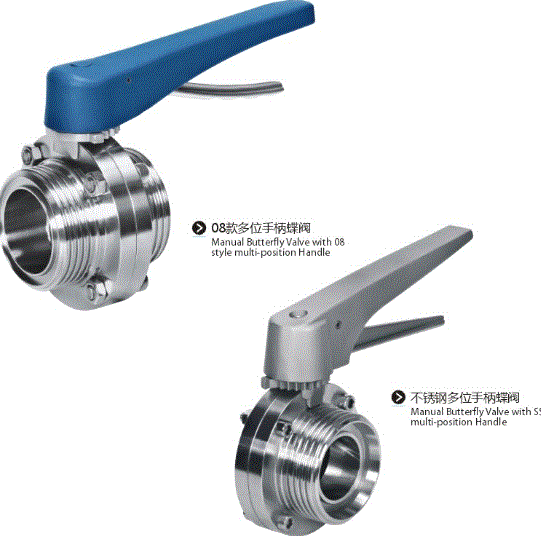

Manual: A number of the handle, lever handle
Certification: PED/97/23/EC, health wading license
