SP05.06 : Kính quan sát - DONJOY
Thông số chính :

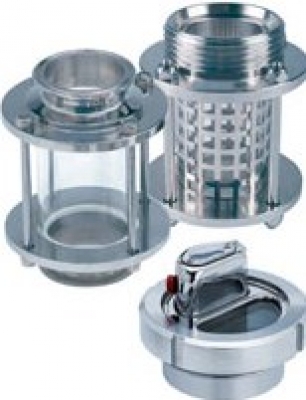

Kính quan sát - Sight Glass - DONJOY
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ).
Model :
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Applications
SJ sight glass is used to observe the working conditions of equipment and systems. According to different conditions, Aomi provides different sight glasses to meet the process requirements. It is widely used in food, beverage and pharmaceutical industries.

SJ-S sight glass is a straight type sight glass which can observe from 360 degrees. Metal protection net is available. It can be installed horizontally or vertically, and used for pipeline inspection. SJ-U sight glass is a union type sight glass easy to disassembly and assembly. It is used for observing tank equipment



 Technical Data

Metal material

Product wetted

316L (DIN-1.4404)

Non-product wetted

304 (DIN-1.4301)

We can provide EN 10204 3.1B certificate.

Sight glass

Pyrex glass (Straight sight glass)

Pyrex glass/tempered glass (Union sight glass)

Seal material

Standard

EPDM

Options

FPM, Silicone, PTFE, NBR

All seal materials comply with FDA 177.2600.

Temperature range

-20°C ~ +135°C (EPDM)

Surface treatment

Internal surface

Ra≤0.8µm

External surface finish

Ra≤1.6µm

Connection

Connection methods: welding, thread, clamp, flange
