SP05.07 : Bộ lọc - DONJOY
Thông số chính :
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ).
Hãng cung cấp : DONJOY
Model :
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Applications
GL sanitary filter is mainly used to protect pumps, instruments and other devices to work regularly. It features compact structure, strong filtering ability, less pressure loss, and convenient maintenance, and is widely used in beverage, pharmaceutical, dairy, and other fields.

Operating Principle
GL sanitary filter is used to prevent the solid particles of the medium from mixing into the subsequent pipeline facilities. The larger solid particles or impurities will remain in the filter cartridge after the medium flow into the proper filter cartridge through the inlet. The filtered medium will flow out of the outlet and ?meet the requirement. When the surrounding pressure of the filter exceeds the requirement, or when the filter cartridge is damaged, you can remove the filter cartridge, clean it or replace it, and re-install it.

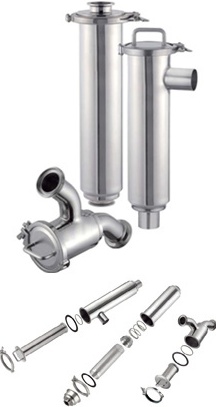

GL sanitary filter has three different configurations.
GL-A Angle type filter
There is no need to remove the filter to clean the cartridge.
GL-S Straight way filter
Clean the cartridge after removing the filter.
GL-Y Y type filter



There is no need to remove the filter to clean the cartridge.GL sanitary filters can be matched with different cartridges according to usage requirements. There are three types of cartridges (metal mesh, perforated plate and wedge wire). The filtering capabilities are as follows:

Metal mesh



Mesh

B (mm)

Effective surface (%)

30
40

0.55
0.40

48
46

60
80

0.30
0.20

52.6
42

100
165

0.15
0.10

36.2
45.4

Perforated plate



A

Effective surface (%)

0.5
1

15
28

1.5
2

33
30

3
5

33
46

Wedge wire





Mesh

B (mm)

Effective surface (%)

30
40

0.55
0.40

48
46

60
80

0.30
0.20

52.6
42

100
165

0.15
0.10

36.2
45.4

Technical Data

Metal material

Product wetted

316L (DIN-1.4404)

Non-product wetted

304 (DIN-1.4301)

We can provide EN 10204 3.1B certificate.

Seal material

Standard

EPDM

Options

FPM, Silicone, NBR

All seal materials comply with FDA 177.2600.

Temperature

Continuous working temperature

-20°C ~ +135°C (EPDM)

Pressure

Working pressure

0~10bar

Surface treatment

Internal surface

Ra≤0.8µm

External surface finish

Matte

Connection

Connection methods: welding, thread, clamp, flange
