SP05.01 : Đầu phun tia nước - Cầu CIP - DONJOY
Thông số chính :
Đầu phun tia nước - Cầu CIP - DONJOY
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ).
Model :
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Applications

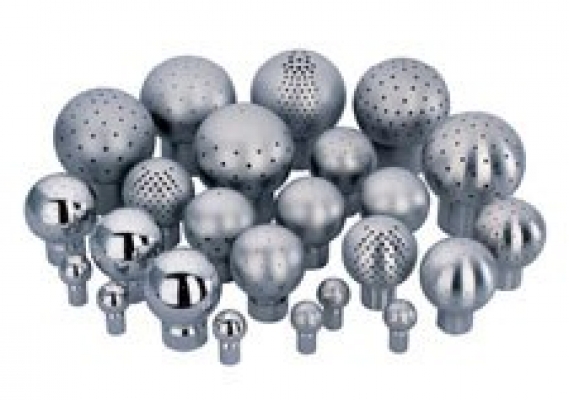

Tank spray balls are mainly used to spray and clean the inside of the tanks strongly. They are mainly used in food-processing, beverage, beer, and pharmaceutical industries.

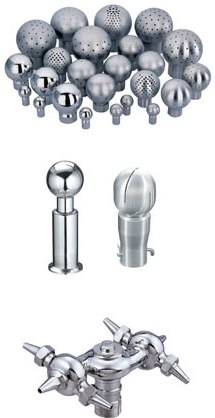

Tank spray ball is divided into three series:
Static spray ball:360 degree spray, 180 degree spray, aperture of spray is 2.5mm.
Rotary spray ball:The ball is spherical or elliptical. Jet orifices are slot shaped.
Rotary jet head:Multi-position spray. All the spray outlets are spraying by rotating during operation.







Dimensions (mm)



Size

A

Q

kg

1"
1-1/4"

140.0
160.0

53.0
63.0



1-1/2"
2"

170.0
192.0

63.0
76.0



2-1/2"

220.0

91.0



Technical data



Size

Pressure (bar)

Cleaning radius (m)

Flux (m3/h)

1"~1.5"
2"

2
2

1.25
1.5

12
38

2.5"

2

2.0

38

Clamp rotary spray ball

Dimensions (mm)



Size

A

Q

kg

1"
1-1/4"

138.0
138.0

53.0
53.0



1-1/2"
2"

138.0
168.0

53.0
63.0



2-1/2"

190.0

76.0



Technical data



Size

Pressure (bar)

Cleaning radius (m)

Flux (m3/h)

1"~1.5"
2"

2
2

1.25
1.5

12
38

2.5"

2

2.0

38

Bolted rotary spray ball

Dimensions (mm)



Size

A

Q

kg

1"
1-1/4"

135.0
137.0

53.0
53.0



1-1/2"
2"

137.0
168.0

53.0
63.0



2-1/2"

190.0

76.0



Technical data



Size

Pressure (bar)

Cleaning radius (m)

Flux (m3/h)

1"~1.5"
2"

2
2

1.25
1.5

12
38

2.5"

2

2.0

38

Female threaded rotary spray ball

Dimensions (mm)



Size

A

Q

kg

1"
1-1/4"

143.0
145.0

53.0
53.0



1-1/2"
2"

145.0
180.0

53.0
63.0



2-1/2"

200.0

76.0



Technical data



Size

Pressure (bar)

Cleaning radius (m)

Flux (m3/h)

1"~1.5"
2"

2
2

1.25
1.5

12
38

2.5"

2

2.0

38

Threaded static spray ball

Dimensions (mm)



Size

A

Q

kg

1"
1-1/4"

72.0
85.0

63.0
76.0



1-1/2"
2"

87.0
102.0

76.0
91.0



Technical data



Size

Pressure (bar)

Cleaning radius (m)

360°/180°
Flux (m3/h)

1"
1-1/4"~1-1/2"

2.5
2.5

1.0~1.25
1.25~1.75

17/10
23/17

2"
2-1/2"

3.5
3.5

2.0~3.0
3.0~3.5

55/38
58/41

Clamp static spray ball

Dimensions (mm)



Size

A

Q

kg

1"
1-1/4"

80.0
93.0

63.0
76.0



1-1/2"
2"

93.0
108.0

76.0
91.0



2-1/2"

115.0

100.0



Technical data



Size

Pressure (bar)

Cleaning radius (m)

360°/180° Flux (m3/h)

1"
1-1/4"~1-1/2"

2.5
2.5

1.0~1.25
1.25~1.75

17/10
23/17

2"
2-1/2"

3.5
3.5

2.0~3.0
3.0~3.5

55/38
58/41

Welding static spray ball

Dimensions (mm)



Size

A

Q

kg

1"
1-1/2"

72.0
85.0

53.0
63.0



2"
2-1/2"

87.0
102.0

91.0
100.0



Technical data



Size

Pressure (bar)

Cleaning radius (m)

Flux (m3/h)

1"
1-1/4"~1-1/2"

2.5
2.5

1.0~1.25
1.25~1.75

17/10
23/17

2"
2-1/2"

3.5
3.5

2.0~3.0
3.0~3.5

55/38
58/41

Bolted static spray ball

Dimensions (mm)



Size

A

Q

kg

1"
1-1/2"

95.0
110.0

63.0
76.0



2"
2-1/2"

125.0
135.0

91.0
100.0



Technical data



Size

Pressure (bar)

Cleaning radius (m)

360°/180° Flux (m3/h)

1"
1-1/4"~1-1/2"

2.5
2.5

1.0~1.25
1.25~1.75

17/10
23/17

2"
2-1/2"

3.5
3.5

2.0~3.0
3.0~3.5

55/38
58/41

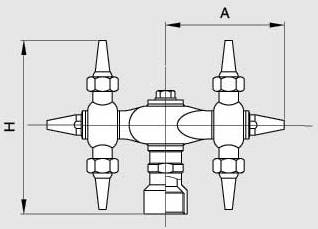

Threaded rotary jet head

Dimensions (mm)

Size

A

H

Pressure (bar)

Cleaning radius (m)

Flux (m3/h)

1"
1-1/2"

118.0
142.0

165.0
189.0

1.5~2.0
1.8~2.5

2.0~3.0
2.5~3.0

23
38

2"

145.0

191.0

2.5~3.0

3.5~4.0

60

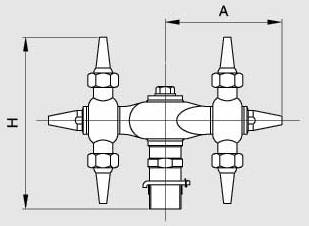

Bolted rotary jet head

Dimensions (mm)

Size

A

H

Pressure (bar)

Cleaning radius (m)

Flux (m3/h)

1"
1-1/2"

118.0
142.0

175.0
200.0

1.5~2.0
1.8~2.5

2.0~3.0
2.5~3.0

23
38

2"

145.0

205.0

2.5~3.0

3.5~4.0

60
