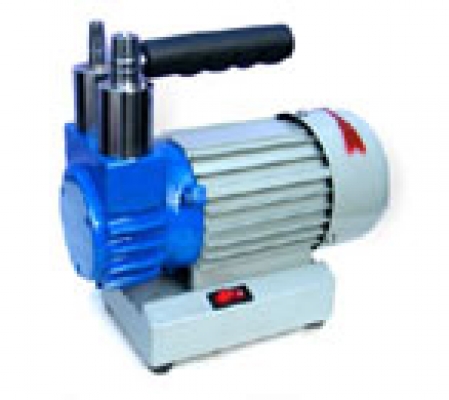

WX-0.5 Oil Free Rotary Vacuum Pump:

Model parameters		WX-0.5
Pump rotation speed（L/S)		0.5
Max.pressure（Pa)		6×10-2
Rotating speed(r/min)		1400
Motor power(KW)		0.12
Voltage(v)		220
Intake caliber（mm)	Inside diameter	8
	Outer diameter	10
Dimension(mm)	long	240
	width	100
	high	180
Weight (KG)		8

This series is a clean vacuum pump. It can work without lubricating oil and have no pollution. This kind of vacuum pump is applicable to vacuum drying machines and vacuum concentration. It is also widely used in pharmacy, chemicals, food packaging, medical appliances, milk processing, printing, photoengraving, forming and laboratory.
Features:
1. No oil vapor, the working environment and the processed products are always clean;
2. Equipped with suction filter and exhaust muffle; long service life, low noise, easy to fix;
3. WX-4 and WX-8 pump with vacuum gauge. It can work continuously.
4. Compact structure, low weight, the dimensions is small than other same type vacuum pump.
