Insertion type

In-line type

Media Compatibility

Air, Nitrogen,O2,CO2,Argon,CH4, Natural gas, biogas, and almost all dry and clean air

Pipe diameter

DN25~6000mm

DN15~300mm

Flow velocity range

0.3~30Nm/s or 0.6~60Nm/s or 0.9~90Nm/s or 1.2~120Nm/s

Accuracy

0.5% RD+ ±1.5% FS

Temperature of medium

－40~+150°c

Pressure of medium

1.6MPa

4.0Mpa

Power supply

AC85～265V or DC13.5～42V

Response time

1 second

Output

Frequency + pulse + 4~20Ma as standard

Communication

RS~485 as standard , 4~20mA@HART as optional

Date displayed

Mass flow, Volume flow in normal condition
Total flow , Temperature of medium. Velocity

Ingress protection grade

IP65 (GB China)

Pipe size (mm)

Pipe size (inch)

Option 1 (0.3~30 Nm/s)

Standard (0.6~60 Nm/s)

Option 2 (0.9~90 Nm/s)

Option 3 (1.2~120 Nm/s)

Min
(Nm3/

hr)

Max
(Nm3

/hr)

Min
(Nm3

/hr)

Max
(Nm3/

hr)

Min
(Nm3/

hr)

Max
(Nm3

/hr)

Min
(Nm3

/hr)

Max
(Nm3

/hr)

25 mm

1“

0.53

53

1.05

105.9

1.58

158.8

2.11

211.8

32 mm

1 1/4"

0.87

86.7

1.73

173.5

2.6

260.3

3.47

347.1

40 mm

1 1/2"

1.36

135.6

2.71

271.1

4.06

406.7

5.42

542.3

50 mm

2"

2.12

211.9

4.23

423.7

6.35

635.5

8.47

847.4

65 mm

2 1/2"

3.58

358.1

7.1

716.1

10.7

1074.1

14.3

1432.2

80 mm

3"

5.42

542.3

10.8

1084.7

16.2

1627.1

21.6

2169.4

100 mm

4"

8.47

847.5

16.9

1694.9

25.4

2542.3

33.8

3389.8

125 mm

5"

13.2

1324.2

26.4

2648.3

39.7

3972.4

52.9

5296.6

150 mm

6"

19.1

1906.8

38.1

3813.5

57.2

5720.3

76.2

7627.1

200 mm

8"

33.9

3389.8

67.7

6779.6

101.6

10169.4

135.5

13559.3

250 mm

10"

53

5296.6

105.9

10593.2

158.8

15889.8

211.8

21186.4

300 mm

12"

76.3

7627.1

152.5

15254.2

228.8

22881.3

305

30508.4

Model

Basic Model

TGF600-

C

2

T

1

1

C

B

C

8

1

Process Connection

Flanged in-line

F

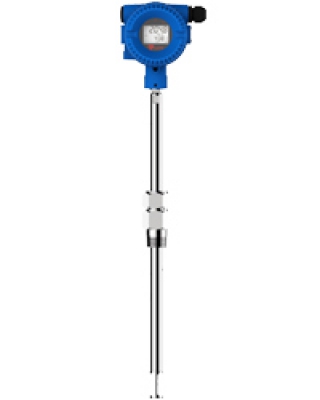

Insertion (NPT)

C

Insertion (NPT)

with anti-ejection design）

D

Inertion

(with flange)

G

Probe Length

290mm

(DN25~DN150)

1

440mm

(DN25~DN500)

2

Other

Q

Trans

mitter

Integral

T

Remote

R

Material

OCr18Ni9(304)

1

316

2

Other

Q

Pressure Rating

1.6 Mpa

1

2.5 Mpa

2

4 Mpa

3

6.3 Mpa

4

Flange Standard

For Chemical industry

A

GB China

B

ANSI

C

Other

Q

Max Temper

- ature

Standard （T≤150℃)

N

Other

Q

Enclosure

Comate blue enclosure

C

Trans

mitter

pulse/frequency + 4~20mA@HART

7

pulse/frequency + 4~20mA + RS485

8

Power supply

13.5~42VDC

1

85~265VAC 50/60Hz

2

Pipe size

please use 3 digit pipe size,

such as DN50=050, DN300=300

XXX

Remark:

1. Ball valve, Hop-tap insertion tool and hot-tap hole opener are

as accessoires, please remark if you need any of them

2. Please indicate flow rate along with the model number selected

3. If you have any requirement that can not be fulfilled in this document,

please check with us to see the availability

4. The model selected in 1st line is the standard configuration

with no accessories
