SP0602.07 : Đồng hồ đo lưu lượng nước | Khí | DH250 | Mặt bích | COMATE
Thông số chính :

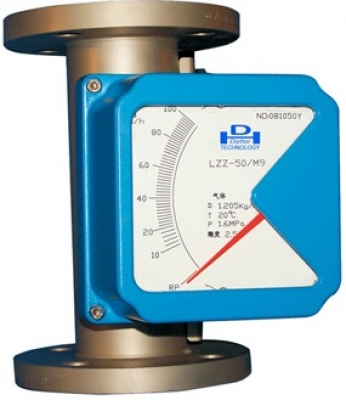

DH250 | Đồng hồ đo lưu lượng nước | Khí | Lưu lượng kế Varialble Area | Mặt bích | COMATE|
Metallic Tube Variable - Area Flowmeter | Flowmeter

CTCP GIẢI PHÁP CÔNG NGHIỆP chuyên Chế tạo thiết bị | Hệ thống bơm định lượng | Cân định lượng | Đo lưu lượng các chất Dầu | Xăng | Khí | Gas | Hơi | Nước | Hóa chất | Nhựa đường | Keo | Bột giấy | Xi măng | ... độ chính xác cao sử dụng hệ thống đo lường | điều khiển SIEMENS ( Đức ).
Hãng cung cấp : COMATE
Model : DH250 Variable - Area Flowmeter Serie
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Variable Area Flow meter Intelligent metal tube rotameter is a high-tech product, the use of stable, reliable and has good prospects for use. It is mainly used in liquid, gas flow measurement and automatic control system in the oil, chemical, pharmaceutical, food and other industries

Meter Model

DH250 Series

Flow range

Water 2.5 l/h to 200 m3/h
Air 0.07 to 4500m3/h (20
1.013bar)

Flow span

10:1

Accuracy

Standard accuracy: 1.5% High accuracy: 1.0%
Standard accuracy (PTFE-Liner): 2.5% High accuracy (PTFE-Liner): 1.5%

Connections

Flange connection
Standard: DIN2501
DN15-DN200
Special: DIN2512
DN15-DN200
      ANSI 1/2 -8 〃)
      The GB JIS users needs
Threaded fittings DIN11851
SC40-SC80[1-1/2 -3 ]
    According to demands of users

Steam Jacket Connections

Internal threads 1/2
NPT
Flange connection DN15 PN40 DIN2501
According to demands of users

Max.Allow. pressure

250bar

Temperature range

Fluid temperature
       -40 to+200 Standard type
       -20 to+125 PTFE-Liner type
       -40 to+400 High temperature type
Ambient temperature
       -40 to+70

Materials

SS304SS304LSS316SS316L
PTFE-Liner
Hastelloy C
Ti
According to demands of users

Protection class

IP67

Supply power

12-28V DC two-wire system battery power

Ex-Design

Exia II CT4-6
Exd II CT4-6
