 | SP0703.02 : Cảm biến mức - Radar - Rosemount 3300 Series Thông số chính :Cảm biến đo mức - Đồng hồ đo mức - Level sensor - Level Indicator : Cảm biến mức - Radar - Rosemount 3300 Series Rosemount 3300 Series - Versatile and easy to use GWR Level Transmitters Guided Wave Radar using TDR (Time Domain Reflectometry) Technology 77 ft (23,5 m) from upper reference point ± 0.2 inch (5 mm) for probes ≤ 16.4 ft (5 m) ± 0.1% of measured distance for probes > 16.4 ft (5 m) 4-20mA with superimposed digital HART® communication Modbus Thiết kế | Chế tạo thiết bị | Máy móc | Dây chuyền | Hệ thống pha trộn định lượng | Hệ thống điều khiển khí nén | Tích hợp từ các thiết bị công nghệ Bơm | Van | Cảm biến đo lường | Thiết bị khí nén SMC ( Nhật bản ) | Thiết bị điều khiển PLC của hãng Allen Bradley (Mỹ) | SIEMENS ( Đức ) Hãng cung cấp : ROSEMOUNT Model : Rosemount 3300 Series - Versatile and easy to use GWR Level Transmitters Chất lượng : Bảo hành 18 tháng |
 Catalog |  Video |      |

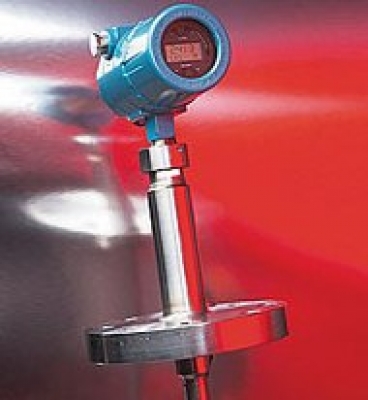

Rosemount 3300 Series - Versatile and easy to use GWR Level Transmitters
Reliable & effortless measurement in demanding applications
The Rosemount 3300 provides reliable and cost effective level measurements in a wide range of applications. Guided Wave Radar technology combined with advanced signal processing and sensitivity enables the Rosemount 3300 Series to deliver both level and interface measurement data from the same transmitter. The 3300 series is now available with a new line of innovative probes, designed to perform reliably and withstand even the toughest process conditions. Two-wire connections ensure easy and inexpensive installation. Features include:
-
A wide range of probe styles to cover virtually any application
-
Multivariable, loop-powered level and interface transmitter which reduces tank penetrations and installation cost
-
Direct Level Measurement means no compensation required for changes in temperature, pressure, density, dielectric or conductivity
-
Easy-to-use Radar Configuration Tools makes setup quick and easy and provides diagnostics with waveform plotting and logging tools
-
Virtually unaffected by dust, vapor and interfering obstacles
-
Robust modular design resulting in low operating cost and increased safety
-
Easily integrated into exisiting HART and Modbus plant architecture.
-
Rosemount 9901 – high quality chambers for process level instrumentation

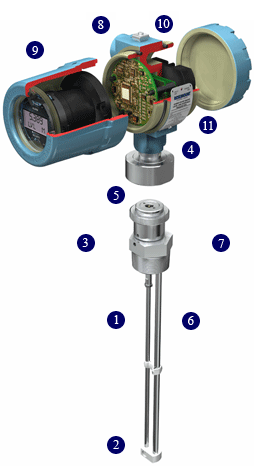

Radar is a continuous level measurement technique that offers several advantages. The measurement is virtually unaffected by temperature, pressure, dust and vapor. The instrument has no moving parts and therefore requires little or no maintenance. It measures the level directly and is therefore unaffected by most fluid property changes. Additionally, the Rosemount 3300 Series has the following benefits:
High application flexibility allows instrument standardization
|
2 - Probes may be cut on site to fit the tank 3 - Handles difficult tank geometries and heavy vapour and dust Robust modular design resulting in low operating cost and increased safety
5 - Detachable transmitter head allows replacement of transmitter head without breaching the tank atmosphere 6 - No mechanical moving parts that require maintenance and no need for re-calibration. Easy commissioning resulting in low installation cost 8 - Single assembly for quick installation 9 - Level and Interface reading from the same transmitter only requires one tank penetration and one pair of wires 10 - Existing cabling may be used 11 - 2-wire loop-powered with easy to access terminals |
|
Specifications :
|
Measurement Principle |
Guided Wave Radar using TDR (Time Domain Reflectometry) Technology |
|
Maximum Measuring Range |
77 ft (23,5 m) from upper reference point |
|
Instrument Accuracy |
± 0.2 inch (5 mm) for probes ≤ 16.4 ft (5 m) |
|
± 0.1% of measured distance for probes > 16.4 ft (5 m) |
|
|
Power Supply |
Loop-powered (2-wire), 11-42 VDC (11-30 VDC in Intrinsically Safe (IS) applications, 16-42 VDC in XP applications) |
|
Output |
4-20mA with superimposed digital HART® communication Modbus |
|
Temperature/Pressure Rating |
Refer to the Product Data Sheet (PDF@1.4Mb) |
|
Hazardous Location Approvals
|
ATEX: Flameproof and Intrinsic Safety |
|
CSA: Explosion-proof and Intrinsic Safety |
|
|
FM: Explosionproof and Intrinsic Safety |
|
|
IECEx: Eplosionproof and Instrinsic Safety |
|
|
Display |
Integral digital display (Option) |
|
Output Variables |
Level, Distance, Interface Level, Interface Distance, Volume, Internal Temperature (Housing), Aout current and % of Range |
|
Enclosure |
Polyurethane-covered die-cast Aluminum or stainless steel housing with dual compartments |
|
Ingress Protection |
NEMA 4X, IP66 |
Applications :
The Rosemount 3300 Series provides reliable and cost effective measurement in a number of applications where other types of loop-powered transmitters cannot be used.
|
|
|
|
Level gauging in liquified gases and ammonia tanks |
|
|
Reliable level measurements of liquids and slurries The Rosemount 3300 Series delivers reliable level data where even other radar transmitters fail. The high signal/noise ratio in the transmitter and the radar pulse focused along the probe helps eliminate echo interference problems. |
|
|
Interface level measurement The Multivariable™ Rosemount 3302 is the only loop-powered transmitter on the market to deliver multi-level measurement. Thanks to its advanced signal processing, it measures both top surface and interface level in tanks containing different liquids, such as oil and water. |
|
|
Measurement of solids in silos The Rosemount 3301, although designed for liquids, may also be used in many solids applications. |
|
