SP0703.16 : Cảm biến mức - Radar - Rosemount 5400
Thông số chính :
Cảm biến đo mức - Đồng hồ đo mức - Level sensor - Level Indicator :
Cảm biến mức - Radar - Rosemount 5400

Rosemount 5400 Series - Superior 2-wire Radar Level Transmitters
Measurement Principle : Pulsed, free propagating radar, 5401: ~6 GHz, 5402: ~26 GHz
Measuring Range : 98 ft (30 m) from flange
Output : 4-20mA with superimposed digital HART® communication FOUNDATION® Fieldbus
Output Variables : Level, Distance, Volume, Level Rate, Signal Strength,
Housing Internal Temperature, Aout current and % of Range

Thiết kế | Chế tạo thiết bị | Máy móc | Dây chuyền | Hệ thống pha trộn định lượng | Hệ thống điều khiển khí nén | Tích hợp từ các thiết bị công nghệ Bơm | Van | Cảm biến đo lường | Thiết bị khí nén SMC ( Nhật bản ) | Thiết bị điều khiển PLC của hãng Allen Bradley (Mỹ) | SIEMENS ( Đức )
Hãng cung cấp : ROSEMOUNT
Model : Rosemount 5400 Series - Superior 2-wire Radar Level Transmitters
Chất lượng : Bảo hành 18 tháng
 Catalog Video

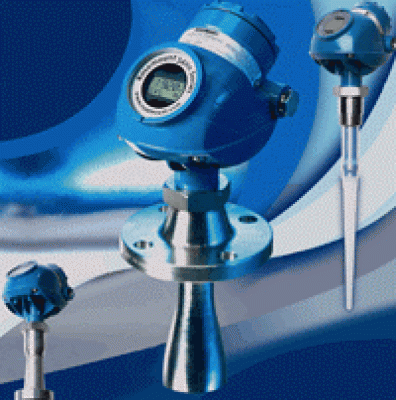

Rosemount 5400 Series - Superior 2-wire Radar Level Transmitters

You cannot afford a single misstep in your process. That’s why we used our 30 years of proven radar expertise to design the new non-contacting Rosemount 5400 Series to focus your plant’s profitability. It delivers higher reliability, improved safety and requires less maintenance and configuration. As a result you will have reduced downtime and lower installation and operating costs.

These features and many more were developed with the customer’s bottom line in mind and make the Rosemount 5400 Series deliver like no 2-wire radar in history. In fact, it’s all that Emerson does best: innovation that delivers clear business results



Features and Benifits :

Radar is a continuous level measurement technique that offers several advantages. It is virtually unaffected by temperature, pressure and vapor gas mixtures. It is a non-contacting method with no moving parts and therefore requires little or no maintenance. It measures the level directly and is therefore unaffected by most fluid property changes, including but not limited to density and viscosity changes.Additionally, the Rosemount 5400 Series offers the following benefits: Higher measurement reliability resulting in improved process uptime through



  Dual Port Technology


Condensation Resistant Antenna


Circular Polarization


Advanced Transmitter Software Robust design resulting in reduced operating costs thanks to


Dual Compartment aluminum or stainless steel housing

Interchangeable transmitter head without opening the tank

Integrated Cooling Fins Easy commissioning resulting in reduced startup costs through


Measure-and-Learn™ transmitter software


User-friendly configuration tool Rosemount Radar Master

Rotate housing in any direction


Easy to access terminals and loop-powered


Single assembly for out-of-box installation





Specifications :

Measurement Principle

Pulsed, free propagating radar
5401: ~6 GHz
5402: ~26 GHz

Measuring Range

98 ft (30 m) from flange

Instrument Accuracy

5401: ±0.4 in (±10 mm)
5402: ±0.1 in (±3 mm)

Repeatability

±0.04 in (±1 mm)

Output

4-20mA with superimposed digital HART® communication
FOUNDATION® Fieldbus

Temperature/Pressure Rating

Refer to the Product Data Sheet (PDF@1500kb)

Ex-Approvals

Intrinsic safety or Explosion / Flame-proof (ATEX, CSA, IECEx, FM, ...)

Display

5-digit integral display (Optional)

Output Variables

Level, Distance, Volume, Level Rate, Signal Strength,
Housing Internal Temperature, Aout current and % of Range

Enclosure

Polyurethane-covered die-cast Aluminum or stainless steel housing with dual compartments.

Ingress Protection

Type 4X, IP66, IP67

Fieldbus Functionality

Link-master device (backup LAS), Block Instantiation, PlantWeb Alerts, Methods

Fieldbus Blocks

Resource
3xTransducer
6xAnalog Input (30 ms)
PID (40 ms)
Arithmetic, Input Selector, Output selector (65 ms)
Signal Characterizer (75 ms)

Configuration Tools

Radar Master, AMS, DeltaV, 275/375, or any other DD- or EDDL-compatible host.



Applications :

The Rosemount 5400 Series can be used for continuous non-contacting level and volume measurements of liquids and semi-liquids. The unchallenged Signal-to-Noise ratio in conjunction with a wide range of antennas and the flexibility of having a low- and high frequency version make it suitable for almost any application in the process industry.



Buffer Tanks

For measurements in tanks with a calm or slightly turbulent surface, the Rosemount 5400 Series transmitter is the preferred choice, particularly where the tank has a narrow nozzle opening.





Chambers and stilling wells
The 5400 is an excellent choice for level gauging in tanks with stilling wells. It may also be used in some chambers, but Guided Wave Radar is generally the best fit for these applications.





Reactor Tanks
The state-of-the art signal processing provided by the 5400 makes it a very suitable choice for tanks with harsh and varying process conditions.
