SP0704.01 : Cảm biến mức - Switch - Rosemount 2160
Thông số chính :
Cảm biến đo mức - Đồng hồ đo mức - Level sensor - Level Indicator :

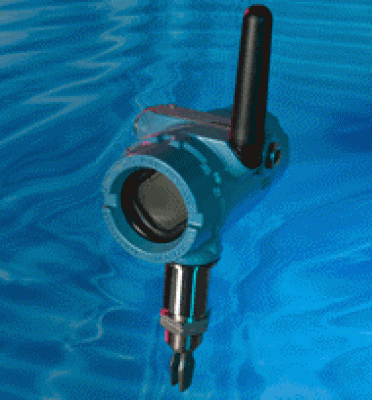

Cảm biến mức - Switch - Rosemount 2160

Wireless HART vibrating fork liquid level switch
The 2160 can withstand temperatures from -94 °F (-70 °C) up to 500 °F (260 °C) and pressures to 1450 psig (100 bar g).

Thiết kế | Chế tạo thiết bị | Máy móc | Dây chuyền | Hệ thống pha trộn định lượng | Hệ thống điều khiển khí nén | Tích hợp từ các thiết bị công nghệ Bơm | Van | Cảm biến đo lường | Thiết bị khí nén SMC ( Nhật bản ) | Thiết bị điều khiển PLC của hãng Allen Bradley (Mỹ) | SIEMENS ( Đức )
Hãng cung cấp : ROSEMOUNT
Model : Rosemount 2160 Wireless Vibrating Fork Liquid Level Switch
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Rosemount 2160 Wireless Vibrating Fork Liquid Level Switch   - Reliable Performance In Demanding Applications

WirelessHART vibrating fork liquid level switch combines Emerson’s wireless expertise with the Rosemount 2100 series vibrating short fork technology.  It has all the same features as the wired level switches in the Rosemount 2100 series, but without the complication and cost of wiring. Features include a complete range of process connections, aluminum housing, a choice of wetted parts materials, dry-to-wet and wet-to-dry switching functions, extended fork lengths, and hazardous area approvals.

The Rosemount 2160 continuously performs instrument health diagnostics of the fork and sensor. These diagnostics can detect external damage to the forks, internal damage to the sensor, excessive corrosion and over-temperature. The 2160 can withstand temperatures from -94 °F (-70 °C) up to 500 °F (260 °C) and pressures to 1450 psig (100 bar g).

The Rosemount 2160 wireless vibrating fork liquid level switch extends the full benefits of PlantWeb® to previously inaccessible or uneconomical locations due to the high cost of wiring in a wide variety of challenging applications.


Features & Benefits :

  • WirelessHART™ capabilities extend the full benefits of PlantWeb® to previously inaccessible locations

  • Designed for operation in temperature extremes of -94 to 500 °F (–70 to 260°C)

  • Suitable for most liquids

  • Virtually unaffected by flow, bubbles, turbulence, foam, vibration, solids content, coating, properties of the liquid, and product variations

  • No moving parts or crevices means virtually no maintenance

  • Electronic, enhanced self-checking and condition monitoring available via local handheld or AMS

  • Adjustable Switching Delay for turbulent/splashing applications

  • Small in size and weight, short fork length up to 118-in (3 m)

  • "Fast Drip" Fork Design gives quicker response time especially with viscous liquids

  • Intrinsically Safe certification option

  • Self-organizing network delivers information rich data with >99% data reliability



Specifications :

Approvals

Certification

Intrinsically Safe, and No hazardous area certification

Construction



Housing

Aluminum

Wetted Material

316⁄316L Stainless Steel (1.4401⁄1.4404) dual certified, or Alloy C (UNS N10002) and Alloy C-276 (UNS N10276)

IP Rating

IP66 to Type 4X

Antenna

PBT⁄PC integrated omni-directional antenna

Connections

Process Connection

Threaded, Flanged, or Hygienic

Electrical

Field Communicator Connections

Clips are permanently fixed to the terminal block inside the housing

Wireless Power Module

Replaceable, Intrinsically Safe Lithium-Thionyl Chloride power module with PBT enclosure

Functional

Output

WirelessHART 2.4 GHz DSSS

Local Display

Optional five-digit integral LCD display can indicate the switch state (Dry or Wet) and diagnostic information

Transmit Rate

User-selectable: from 4 seconds up to 60 minutes

Operating Conditions

Process Temperature

-94 to 500 °F (-70 to 260 °C)

Process Pressure

1450 psi at 122 °F (100 barg at 50 °C)

Note: Extended lengths are available



Applications :



Overfill Protection

Spillage caused by overfilling can be hazardous to people and the environment, resulting in lost product and potentially high clean up costs.



High and Low Level Alarm

Maximum and minimum level detection in tanks containing different types of liquids are ideal applications. The Rosemount 2160 is robust and operates continuously across the temperature range of -94 to 500 °F (-70 to 260 °C) and operating pressures of up to 1450 psig (100 bar g), making it perfect for use as a high or low level alarm. It is common practice to have an independent high level alarm switch as a backup to an installed level device in case of primary failure.



Pump Control (Limit Detection)

Batch processing tanks often contain stirrers and agitators to ensure mixing and product ‘fluidity’. The standard user-selectable time delay, from 0 to 3600 seconds, virtually eliminates the risk of false switching from splashing.



Pump Protection or Empty Pipe Detection

With the fork projecting only 2 in. (50 mm) (dependant on connection type), the 2160 can be installed in small diameter pipes. Short forks mean minimum intrusion on the wet-side and allow for simple, low cost installation at any angle into tanks or pipes.



Extreme Temperature Applications

The 2160E is designed for extreme temperatures and is suitable for continuous operation within the temperature range of -94 to 500 °F (-70 to 260 °C).



Hygienic Applications

With the highly polished forks option providing a surface finish (Ra) better than 0.4 µm, the 2160 meets the most stringent hygienic requirements used in food and beverage, and pharmaceutical applications. Manufactured in stainless steel, the 2160 is robust enough to easily withstand steam cleaning (CIP) routines.
