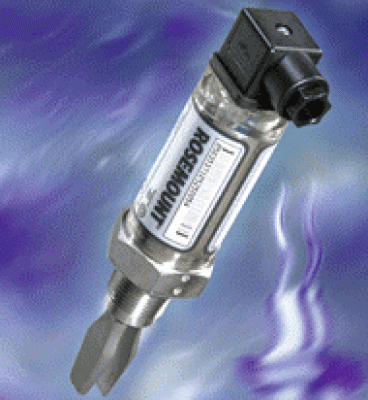

Rosemount 2110 Compact Vibrating Fork Liquid Level Switch

Compact Package Ideal for OEM applications

The Rosemount 2110 is based on vibrating short fork technology, making it suitable for most fluid applications. Features include a rugged stainless steel body and fork, economical threaded connections or hygienic connections, direct load switching or PNP output, and overfill approval. The Rosemount 2110 withstands temperatures up to 300 °F (150 °C) and pressures to 1450 psig (100 barg) and is for use in safe areas. As a result, the Rosemount 2110 is ideal for OEM applications.

• Compact design, small in size and weight, short forks

• Function virtually unaffected by flow, turbulence, bubbles, foam, vibration, solids content, coating, properties of the liquid, and product variations

• No need for calibration and requires minimum installation procedures

• Polarity insensitive and short circuit protection

• Industry standard plug ⁄ socket connection

• No moving parts or crevices means virtually no maintenance

• Basic electronic self-checking functionality

• Visible Heartbeat LED shows device status

• Local Magnetic Test Point makes functional test easy

• “Fast Drip” Fork Design gives quicker response time especially with viscous liquids

Features & Benefits :

• Rugged stainless steel body and fork; the ideal choice for OEM applications

• Compact design, small and lightweight, perfect for small vessel or pipe installation

• Short fork or semi-extended lengths

• Direct load switching or PNP ⁄ PLC electronics

• Safe area only

Specifications :

Applications for the Rosemount 2110 Liquid Level Switch
Rosemount 2110 can be used for point level measurements on liquids in most processes and most industries in safe areas. Applications include:

·  Overfill protection

·  Pump protection

·  High level alarm

·  Leak detection

·  Pump control
