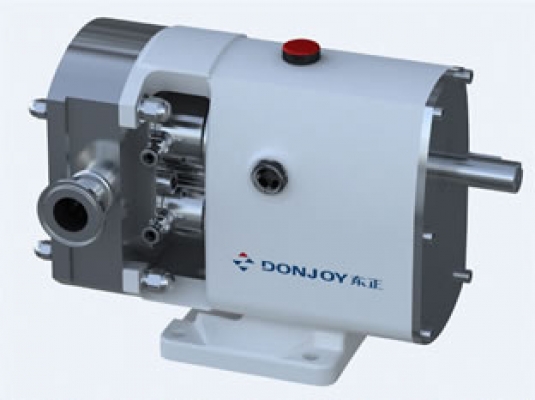

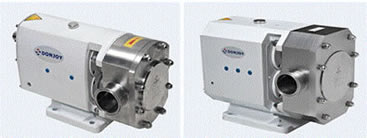

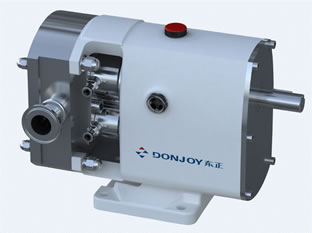

SP2002.01 : Bơm Lobe / Bơm Rotor - DONJOY
Thông số chính :
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ).
Hãng cung cấp : DONJOY
Model :
Chất lượng : Bảo hành 18 tháng
 Catalog Video




Applicaton:
This is a positive displacement lobe rotor pump,it is suitable for food processing,cosmetics and transmission of high-viscosity and low-viscosity media in

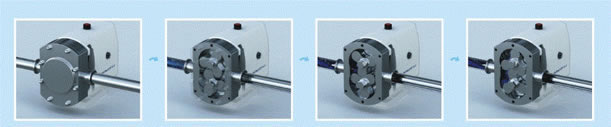

Operating Priciples
The pump basically consists of two lobe rotors which rotate inside the casing without touching each other. As the rotors rotate,the space between the lobes and the casing is successively filled with the product which is driven to discharge nozzle displacing a fixed amount of product. The pumped product forms a continous stream due to adjusted tolerances of the lobes and the pump casing thus ensuring an efficient pumping.

Technical specification:
Max. Flow: 90m3/h / 395GPM
Max. Pressure
12bar / 174 PSI
Max. Temperature
120 / 248F
Max. Speed: 1450 rpm
Certificate
3A-02-10/1579FDA177.1600
