SP2002.02 : Bơm trao đổi khí - DONJOY
Thông số chính :
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ)
Hãng cung cấp : DONJOY
Model :
Chất lượng : Bảo hành 18 tháng
 Catalog Video

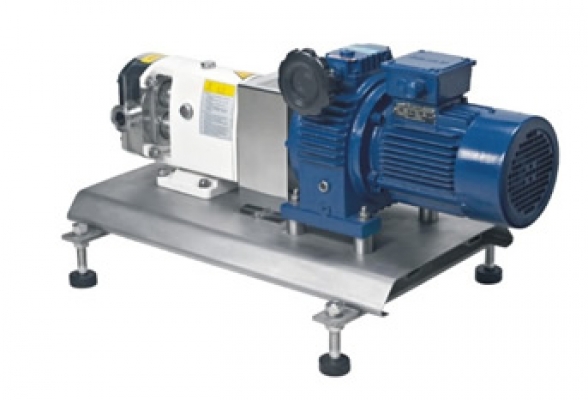

Lobe Pump Mechanical Variable

It is a positive displacement pump,designed according to 3A standard which requies very strict hygienic requirements to equipment and processes. The pump is ideal for the transfer of viscous as well as low-viscous media in the food processing, cosmetics and pharmaceutical industries.
The pump basically consists of two lobe rotors which rotate inside the casing without touching each other.As the rotors rotate, the space between the lobes and the casing is successively filled with the product which is driven to the discharge nozzle displacing a fixed amount of product.The pumped product forms a continous stream due to the adjusted tolerances of the lobes and the pump casing thus ensuring an efficient pumping.

Design and features:
Horizontal TUL series
Bare-shaft construction
Butterfly rotor
Hygienic design
Internal assemblied mechanisal seal
Easy cleaning and maintenance
Connection way: Clamp (Standard)
Suitable for CIP cleaning and SIP sterilization
Pump body: AISI 316L (1.4404)/

Gearbox: Cast iron
Gasket(standard): EPDM (comply with FDA 177.2600)
Mechanical sealing(Standard): SIC/SiC/EPDM(Standard):
Internal surface finish: Ra≤0.6μm
External surface finish: Polish


Technical specifications:
Max. Flow: 90m3/h / 395GPM
Max. Pressure:12bar / 174 PSI
Max. Temperature:150
Max. rev: 1450 rpm

Mechanical sealing material: SiC/SiC, TgC/SiC.
Mechanical sealing with cooling system.
Gasket material: FPM (Viton) and PTFE.
With safety valve
Vertical TUR series
Horizontal TUL series
Various types of drives and fitting:
(1)Manual adjustable gearbox
(2)Frequency converter gearbox
(3)Fixed speed output reducer.
Connection way: Clamp(DIN32676,3A,ISO),Thread(DIN,SMS,RJT,IDF)
3.1 Mill certificate and roughness certificate.
Motor type B5,Frequency: 50HZ,60HZ
Voltage: (V)220-240,360-400,420-460,630-690

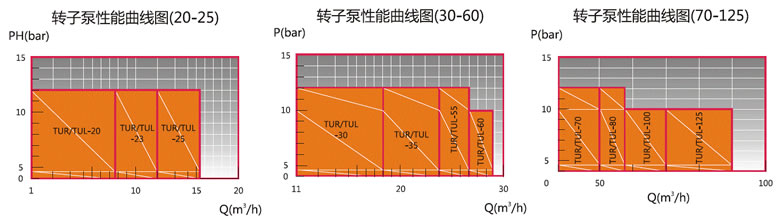

Performance Curve for  TUL/TUR series
