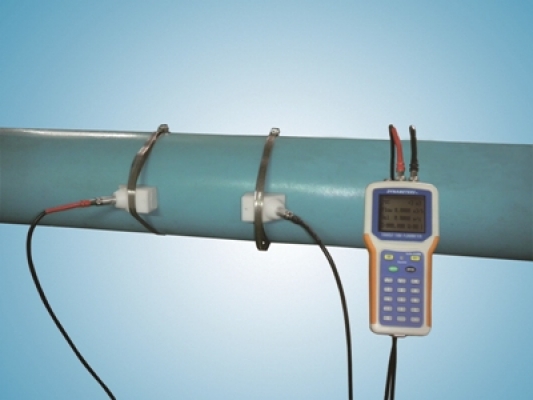

Series DMTFH Handheld Transit Time Ultrasonic Flow Meters

Features

1.      Carefully designed so that is very compact and ease to use.

2.      Principle of Transit Time and MultiPulseTM Technology.

3.      Can be used for mobile measurement, flow rate calibration, data comparing, meters running status checking.

4.      A variety of liquid applications can be accommodated: ultra-pure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent, etc.

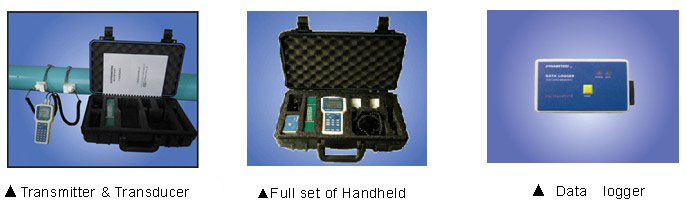

5.      Data Logger functions. The capacity is based on users’ choice, and the maximum can reach 8GB. Users can store 5 years' data in it at least and user can read, edit and export the data for reference and analysis.

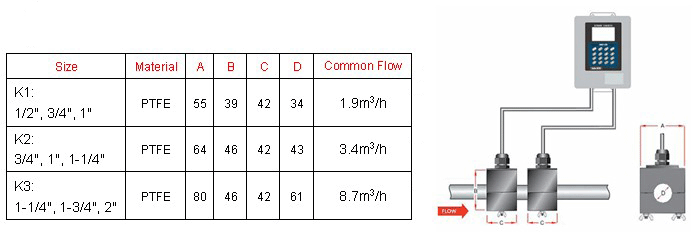

Note: K mode transducers utilize the Round-Clamp method, and the transducers' transmitting and receiving sides are connected with the pipe surface thoroughly to acquire enough coupling area, better reliability, stability, etc.
