SP05.08 : Van vi sinh - van góc - van điều khiển - SANITARY
Thông số chính :
Van vi sinh - van góc - van điều khiển - SANITARY
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ)
Model :
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Applications

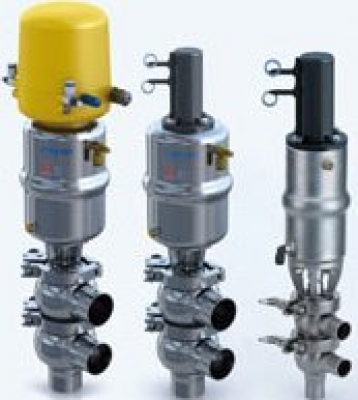

DZ3 sanitary single-seat valve has very flexible design which meets sanitary requirements, and is mainly used in pipeline systems without contaminant or mixture. As a modern and widely-used valve, it is mainly used in the wine brewing, dairy, beverage, and pharmaceutical industries.

Operating Principle
DZ3 sanitary single-seat valve is remotely operated by means of compressed air. By controlling the relative position of valve plug, it makes the valve open or closed (shut-off type), or changes the flow direction of media (divert type).

DZ3 sanitary single-seat valve is equipped with our ZK3 smart controller, which not only remote controls the single-seat valve, but can also perform real-time monitoring of the valve working conditions and timely feedback of signals. It can also be equipped with the position sensor only.

DZ3 sanitary single-seat valve can be equipped with Burkert 1066 controller by installing an adapter plate.



Actuator Function
1. The actuator moves downwards pneumatically, the spring is reset.
2. The actuator moves upwards pneumatically, the spring is reset.
3. The actuator moves upwards or downwards pneumatically.

Technical Data

Metal material

Product wetted

316L (DIN-1.4404)

Non-product wetted

304 (DIN-1.4301)

We can provide EN 10204 3.1B certificate.

Seal material

Standard

EPDM

Options

NBR, FPM, Silicone

All seal materials comply with FDA 177.2600.

Temperature

Continuous working temperature

-20°C ~ +135°C (EPDM)

Sterilization temperature

150°C (Max 20min)

Pressure

Working pressure

0~5bar (standard)

Accepting high pressure requirement

Control air pressure

5~8bar

Surface treatment

Internal surface

Ra≤0.8µm

External surface

Shot blasting

Connection

Connection standards

Welding end: DIN 11850 series 2

Welding end: Inch pipe diameter standard

Connection methods: welding, thread, clamp, flange

Options

Smart controller

24V DC

Solenoid valve (1 or 2)

Position sensor

24V DC

NPN/PNP position sensor (2)

Body Configurations
