SP05.15 : Van Bướm - Bi vi sinh - SANITARY
Thông số chính :
Van Bướm - Bi vi sinh - Sanitary Butterfly - Ball Value - SANITARY
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ)
Model :
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Applications

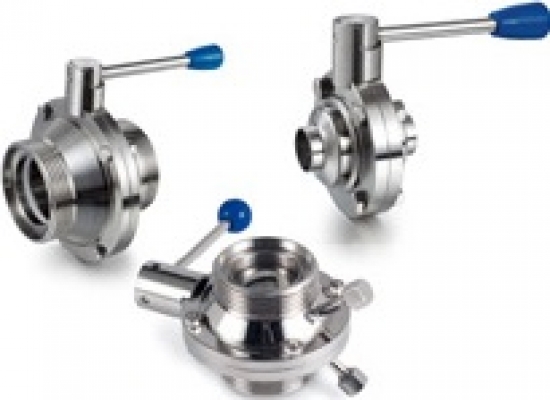

QF7 sanitary butterfly-ball valve is an automatically or manually operated sanitary butterfly valve. It's suited for various applications in stainless steel pipe systems. It is the best choice for treating viscous medium or medium containing particulate substance in the sanitary industries. It is mainly used in food, beverage, pharmaceutical and chemical industries.

Operating Principle
QF7 sanitary butterfly-ball valve can be manually operated by a handle or remote controlled by an actuator. It is characterized by simple structure and easy disassembly as butterfly valve. Meanwhile, it features less resistance, flexible opening and closing, wide application range and long lifetime. With the design of drainage device, the problem of medium remaining is reduced, which is very common in ordinary ball valves.



Technical Data

Metal material

Product wetted

304L/316L (DIN-1.4307/1.4404) forged

Non-product wetted

304 (DIN-1.4301)

We can provide EN 10204 3.1B certificate.

Seal material

Standard

PTFE/EPDM

Options

FPM/PTFE, HNBR/PTFE, Silicone/PTFE

All seal materials comply with FDA 177.2600.

Temperature

Continuous working temperature

-20°C ~ +135°C (EPDM/PTFE)

Sterilization temperature

150°C (Max 20min)

Pressure

Working pressure

10bar

Surface treatment

Internal surface

Ra≤0.8µm

External surface

Ra≤1.6µm

Connection

Connection standards

Welding end: DIN 11850 series 2

Welding end: Inch pipe diameter standard

Connection methods: welding, thread, clamp, flange
