Van bi vi sinh - Sanitary Ball Valve - SANITARY
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ)
Model :
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Applications
QF5 sanitary ball valve is a sanitary ball valve designed for product transmission. It is widely used in food, beverage, pharmaceutical and chemical industries.

The full bore design of valve chamber does not cause any fluid resistance. This makes QF5 sanitary ball valve the optimum choice for treating viscous liquid or liquid containing particulates.
Operating Principle

A precision made ball with through chamber is set in the valve body between two flanges and two PTFE valve seats. The valve shaft can act on the ball by 90° rotation and make the valve open or closed.

QF5 sanitary ball valve is operated by a pneumatic actuator or manually operated by a handle. There are three configurations for QF5 sanitary ball valve.

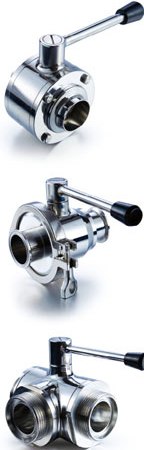

QF5-1 sanitary ball valve is a three-piece ball valve, consisting of two flanges, one valve body and two PTFE valve seats. It is installed with threaded ends. Valve seat cleaning adapters can be installed to clean the valve chamber. The drainage is discharged from the drainage hole.

QF5-2 sanitary ball valve is a three-way ball valve. It has two configurations: T type and L type. It consists of one valve body, valve covers and PTFE valve seats. It is installed with threaded ends.

QF5-3 sanitary ball valve is a two-piece ball valve, consisting of one valve body, valve adapters and two PTFE valve seats. It is installed with clamped ends. Valve seat



cleaning adapters can be installed to clean the valve chamber. The drainage is discharged from the drainage hole.

Technical Data


Metal material

Product wetted

304L/316L (DIN-1.4307/1.4404) forged

Non- product wetted

304 (DIN-1.4301)

We can provide EN 10204 3.1B certificate.

Seal material

Standard

PTFE/EPDM

Options

FPM/PTFE, HNBR/PTFE, Silicone/PTFE

All seal materials comply with FDA 177.2600.

Temperature

Continuous working temperature

-20°C ~ +135°C (EPDM/PTFE)

Sterilization temperature

150°C (Max 20min)

Pressure

Working pressure

0~16bar

Surface treatment

Internal surface

Ra≤0.8µm

External surface finish

Matte

Connection

Connection standards

Welding end: DIN 11850 series 2

Welding end: Inch pipe diameter standard

Connection methods: welding, thread, clamp, flange
