SP0501.07 : SM-50 | SM-80 | Đồng hồ đo lưu lượng dầu | Vane | DIGITAL FLOW
Thông số chính :
SM-50 | SM-80 | Đồng hồ đo lưu lượng dầu | Vane | DIGITAL FLOW
SM PD - Positive Displacement Vane Flow Meter | Flowmeter

CTCP GIẢI PHÁP CÔNG NGHIỆP chuyên Chế tạo thiết bị | Hệ thống bơm định lượng | Cân định lượng | Đo lưu lượng các chất Dầu | Xăng | Cồn | Khí | Gas | Hơi | Nước | Hóa chất | Nhựa đường | Keo | Bột giấy | Xi măng | ... độ chính xác cao sử dụng hệ thống đo lường | điều khiển SIEMENS ( Đức ).
Hãng cung cấp : DIGITAL FLOW
Model : SM-50-I | SM-80-1
Chất lượng : Bảo hành 18 tháng
 Catalog Video

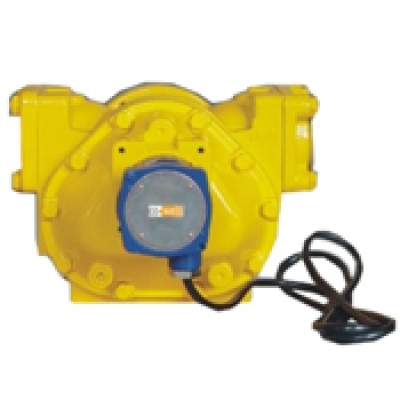

SM PD Flow vane Meter

M series positive displacement flow meter offer the measurement for custody transfer of petroleum, diesel products, aviation fuels, Shipping fuels, gas meter and a broad of industrial liquids. this type of PD flow meter with strainer and air eliminator, it can filter all kinds of impurities.

Characteristics of SM PD Flow vane Meter:

1. Excellent stepless adjusting mechanism allows a micro adjustment on the flower meter;

2. High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow;

3. Low maintenance, no metal-to-metal contact in measuring chamber, long life service;

4. Low pressure loss, a true gravity flow meter;

5. Accuracy regardless of pressure fluctuations, temperature variation, viscosity

Application of SM PD Flow vane Meter:

1. Refined petroleum products, A wide variety of products such as: liquid sugars, corn syrup, corn sweeteners, dextrose, fructose, sucrose, maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil, Aviation gasoline and jet fuels;

2. Treated waters (deionized, demineralized, and potable)

3. Chlorinated solvents and general solvent metering;

4. Acid pH liquids;

5. Liquefied petroleum gas (LPG);

6. Crude oil, also for heated and/or viscous liquids;

7. Oil or water based latex products, polyester resins, and adhesives (neutral pH), also for metering herbicides and nitrogen fertilizer solutions;

8. Herbicide;

9. Sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD) and other alkaline pH liquids ;

10. Abrasive liquids

Industries:
Automotive; Adhesives; Agriculture; Asphalt ; Aviation fueling ; Animal feeds; Beverage; Cosmetics ; Chemical processing; Concrete Add mixtures; Dairy; Liquid fertilizers; Food processing ; Fuel oil delivery; General industrial; Hydrocarbon processing; Liquefied gases; Lube oils; Marine; Paint and varnish; Petroleum marketing; Petroleum production ; Pharmaceutical; Printing ink; Pulp &paper; Refining commercial Solvents; Recycling Railroad ; Textile.

Technical Specification of SM PD Flow vane Meter:

Model

SM-50-I

SM-80-1

Size

50mm/2"

80mm/3"

Volume per Revolution

0.4L/0.08US Gallon

2.27L/0.5US Gallon

Max. Flow Rate

24M3/h or 400L/Min or 105US Gallon

80M3/h or 1333L/Min or 360US Gallon

Min. Flow Rate

2.4M3/h or 40L/Min or 10.5US Gallon

8M3/h or 133.3L/Min or 36US Gallon

Accuracy

±0.2%

±0.2%

Repeatability

≤0.05%

≤0.05%

Max. Operation Pressuer

8Bar/120PSI/8.3Kg/cm3

10Bar/150PSI/10.5Kg/cm3

Working Temp.

-40 ~+60

-40 ~+60

Max. Viscosity

800Cps/3850SSU
